Introduction
Countdown Timer is used to measure whether a task is complete before the time interval or measure how much time a task has taken to complete. There are many real-life examples where it is used. For example, Online Exams, in Sports, etc.
In this tutorial, we will create a Countdown Timer in Python with Start and Pause Features. Users can pause and resume the countdown time here. We will give a beautiful graphical interface to this project using the Tkinter library.
We are gonna include the following features to this Countdown Timer.
Features
- Set the time
- Start or resume time
- Pause the countdown time
- When the remaining time will reach zero, a music will play in the background to notify.
 |

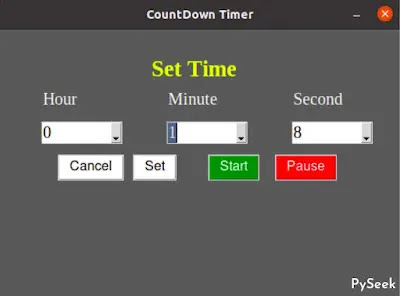

| User Interface of the CountDown Timer App |
The Project Details
First, you have to set the time through a Combobox, then press the 'Set' button. When the 'Set' button is pressed, two more buttons (the 'Start' button and 'Pause' button) will appear on the right side (See the image above).
You can Start and Pause the timer as your need. The pause feature makes the Timer more reliable (here, we didn't use sleep function to pause the time).
If you press the 'Start' button, the remaining time will show on the screen and every second will decrease by one. When the remaining time reaches zero, a notification will be popped up with music, playing in the background.
Important Note
In this project, I've used the playsound module to play an mp3 file for the notification. In the main program, you'll see a music file added like this: "Ringtones/romantic.mp3" (For Windows, the path will be like this: "Ringtones\romantic.mp3").
It's necessary to present this "romantic.mp3" file in the "Ringtones" folder in the main directory where the program file is situated. You can also use another music file; just need to mention the path properly in the program.
If you want to avoid reading the whole article, you can download the project file from my GitHub page through the Download Button given below.
Requirements and Installation
☛Install tkinter: pip install tk
☛Install playsound: pip install playsound
Import the modules
Let's create a separate folder 'CountDown' and declare a python file there with this name: 'CountDown.py'. You need to create one more folder 'Ringtones' under the 'Countdown' directory for storing music files or ringtones there (Get all the resources from my GitHub page; the Download Button has given below).
Now start writing your code by importing these modules.
# Import the time module
import time
from tkinter import *
import multiprocessing
from tkinter import ttk, messagebox
from playsound import playsound
from threading import *
Declare the lists of hours and minutes
Here these two Python Lists contain the hours and minutes list which are gonna used in the upcoming program.
# Hour list
hour_list = [0, 1, 2, 3, 4, 5, 6, 7, 8, 9,
10, 11, 12, 13, 14, 15, 16, 17, 18, 19,
20, 21, 22, 23, 24]
# Minute List
min_sec_list = [0, 1, 2, 3, 4, 5, 6, 7, 8,
9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19,
20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30,
31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41,
42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52,
53, 54, 55, 56, 57, 58, 59,]
Declare the 'CountDown' class
Here all the Tkinter widgets (Labels, Buttons, Combo boxes, etc) have been declared.
# Creating a CounDown Class
class CountDown:
def __init__(self, root):
self.window = root
self.window.geometry("480x320+0+0")
self.window.title('CountDown Timer')
# Tkinter window background color
self.window.configure(bg='gray35')
# Fixing the Window length constant
self.window.resizable(width = False, \
height = False)
# Declaring a variable to pause the
# countdown time
self.pause = False
# The Start and Pause buttons are placed
# inside this frame
self.button_frame = Frame(self.window, \
bg="gray35", width=240, height=40)
self.button_frame.place(x=230, y=150)
# This frame is used to show the countdown
# time label
self.time_frame = Frame(self.window, bg="gray35", \
width=480, height=120).place(x=0, y=210)
# Tkinter Labels
time_label = Label(self.window, text="Set Time", \
font=("times new roman",20, "bold"), \
bg='gray35',fg='yellow')
time_label.place(x=180, y=30)
hour_label = Label(self.window, text="Hour",
font=("times new roman",15), bg='gray35', fg='white')
hour_label.place(x=50, y=70)
minute_label = Label(self.window, text="Minute",
font=("times new roman",15), bg='gray35', fg='white')
minute_label.place(x=200, y=70)
second_label = Label(self.window, text="Second",
font=("times new roman",15), bg='gray35', fg='white')
second_label.place(x=350, y=70)
# ===========================================
# Tkinter Comboboxes
# Combobox for hours
self.hour = IntVar()
self.hour_combobox = ttk.Combobox(self.window, \
width=8, height=10, textvariable=self.hour, \
font=("times new roman",15))
self.hour_combobox['values'] = hour_list
self.hour_combobox.current(0)
self.hour_combobox.place(x=50,y=110)
# Combobox for minutes
self.minute = IntVar()
self.minute_combobox = ttk.Combobox(self.window, \
width=8, height=10, textvariable=self.minute, \
font=("times new roman",15))
self.minute_combobox['values'] = min_sec_list
self.minute_combobox.current(0)
self.minute_combobox.place(x=200,y=110)
# Combobox for seconds
self.second = IntVar()
self.second_combobox = ttk.Combobox(self.window, \
width=8, height=10, textvariable=self.second, \
font=("times new roman",15))
self.second_combobox['values'] = min_sec_list
self.second_combobox.current(0)
self.second_combobox.place(x=350,y=110)
# ===========================================
# Tkinter Buttons
# Cancel button
cancel_button = Button(self.window, text='Cancel',
font=('Helvetica',12), bg="white", fg="black",
command=self.Cancel)
cancel_button.place(x=70, y=150)
# Set Time Button
# When the user will press this button
# the 'Start' and 'Pause' button will
# show inside the 'self.button_frame' frame
set_button = Button(self.window, text='Set',
font=('Helvetica',12), bg="white", fg="black",
command=self.Get_Time)
set_button.place(x=160, y=150)
The Cancel function
When the Cancel Button is pressed, this function gets a call. It stops the program and destroys the GUI window.
# It will destroy the window
def Cancel(self):
self.pause = True
self.window.destroy()
Get the time from the user
When the 'Set' Button is pressed, this 'Get_Time()' function takes the time set by the user. If the users try to set the default value (0:0:0, see the yellow line), the program will show a warning message on the screen to choose a countable time.
After pressing the 'Set' Button, the 'Start' and 'Pause' buttons appear on the right side that allows the users to Start (or Resume) and Pause the time as their need.
# When the set button is pressed, this
# function gets called
def Get_Time(self):
self.time_display = Label(self.time_frame,
font=('Helvetica', 20 , "bold"),
bg = 'gray35', fg = 'yellow')
self.time_display.place(x=130, y=210)
try:
# Total amount of time in seconds
h = (int(self.hour_combobox.get())*3600)
m = (int(self.minute_combobox.get())*60)
s = (int(self.second_combobox.get()))
self.time_left = h + m + s
# If the user try to set the default
# time(0:0:0) then a warning message will display
if s == 0 and m == 0 and h == 0:
messagebox.showwarning('Warning!',\
'Please select a right time to set')
else:
# Start Button
start_button = Button(self.button_frame, \
text='Start', font=('Helvetica',12), \
bg="green", fg="white", \
command=self.Threading)
start_button.place(x=20, y=0)
# Pause Button
pause_button = Button(self.button_frame, \
text='Pause', font=('Helvetica',12), \
bg="red", fg="white", command=self.pause_time)
pause_button.place(x=100, y=0)
except Exception as es:
messagebox.showerror("Error!", \
f"Error due to {es}")
Creating an another Thread
Now create an another Thread for handling these tasks:
- Showing the Remaining time.
- Handling Start and Pause function perfectly.
It will help to running the CountDown Timer Smoothly.
# Creating a thread to run the show_time function
def Threading(self):
# Killing a thread through "daemon=True" isn't a
# good idea
self.x = Thread(target=self.start_time, daemon=True)
self.x.start()
Clear the Screen
Look at the 'CountDown' class (yellow lines); I've added a frame named 'button_frame' there for the Start and Pause buttons. When this function gets called, it simply clears all the widgets (only Start and Pause buttons) present there.
# It wil clear all the widgets inside the
# 'self.button_frame' frame(Start and Pause buttons)
def Clear_Screen(self):
for widget in self.button_frame.winfo_children():
widget.destroy()
The Start function
See, at the very first I've set self.pause = False. In every iteration of the while loop, the code checks if the status of self.pause is True or not. When it's True (when the pause button is pressed), the while loop breaks.
# When the Start button will be pressed then,
# this "show_time" function will get called.
def start_time(self):
self.pause = False
while self.time_left > 0:
mins, secs = divmod(self.time_left, 60)
hours = 0
if mins > 60:
# hour minute
hours, mins = divmod(mins, 60)
self.time_display.config(text=f"Time Left: \
{hours}: {mins}: {secs}")
self.time_display.update()
# sleep function: for 1 second
time.sleep(1)
self.time_left = self.time_left -1
# When the time is over, a piece of music will
# play in the background
if self.time_left <= 0:
process = multiprocessing.Process(target=playsound, \
args=('Ringtones/romantic.mp3',))
process.start()
messagebox.showinfo('Time Over',\
'Please ENTER to stop playing')
process.terminate()
# Clearing the 'self.button_frame' frame
self.Clear_Screen()
# if the pause button is pressed,
# the while loop will break
if self.pause == True:
break
The Pause function
Look, at the very first the status of self.pause is set True. It pauses the time from reducing in the while loop at the Start function (remember, it happens when the while loop breaks). Then it only displays the remaining time on the screen at the pause condition.
def pause_time(self):
self.pause = True
mins, secs = divmod(self.time_left, 60)
hours = 0
if mins > 60:
# hour minute
hours, mins = divmod(mins, 60)
self.time_display.config(text=f"Time Left: \
{hours}: {mins}: {secs}")
self.time_display.update()
The main function
if __name__ == "__main__":
root = Tk()
# Creating a CountDown class object
obj = CountDown(root)
root.mainloop()
Full Code
Here is the full code for your convenience.
'''Create a Countdown timer in python with Start
and Pause Button'''
# Import the time module
import time
from tkinter import *
import multiprocessing
from tkinter import ttk, messagebox
from playsound import playsound
from threading import *
# Hour list
hour_list = [0, 1, 2, 3, 4, 5, 6, 7, 8, 9,
10, 11, 12, 13, 14, 15, 16, 17, 18, 19,
20, 21, 22, 23, 24]
# Minute List
min_sec_list = [0, 1, 2, 3, 4, 5, 6, 7, 8,
9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19,
20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30,
31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41,
42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52,
53, 54, 55, 56, 57, 58, 59,]
# Creating a CounDown Class
class CountDown:
def __init__(self, root):
self.window = root
self.window.geometry("480x320+0+0")
self.window.title('CountDown Timer')
# Tkinter window background color
self.window.configure(bg='gray35')
# Fixing the Window length constant
self.window.resizable(width = False, \
height = False)
# Declaring a variable to pause the
# countdown time
self.pause = False
# The Start and Pause buttons are placed
# inside this frame
self.button_frame = Frame(self.window, \
bg="gray35", width=240, height=40)
self.button_frame.place(x=230, y=150)
# This frame is used to show the countdown
# time label
self.time_frame = Frame(self.window, bg="gray35", \
width=480, height=120).place(x=0, y=210)
# Tkinter Labels
time_label = Label(self.window, text="Set Time", \
font=("times new roman",20, "bold"), \
bg='gray35',fg='yellow')
time_label.place(x=180, y=30)
hour_label = Label(self.window, text="Hour",
font=("times new roman",15), bg='gray35', fg='white')
hour_label.place(x=50, y=70)
minute_label = Label(self.window, text="Minute",
font=("times new roman",15), bg='gray35', fg='white')
minute_label.place(x=200, y=70)
second_label = Label(self.window, text="Second",
font=("times new roman",15), bg='gray35', fg='white')
second_label.place(x=350, y=70)
# ===========================================
# Tkinter Comboboxes
# Combobox for hours
self.hour = IntVar()
self.hour_combobox = ttk.Combobox(self.window, \
width=8, height=10, textvariable=self.hour, \
font=("times new roman",15))
self.hour_combobox['values'] = hour_list
self.hour_combobox.current(0)
self.hour_combobox.place(x=50,y=110)
# Combobox for minutes
self.minute = IntVar()
self.minute_combobox = ttk.Combobox(self.window, \
width=8, height=10, textvariable=self.minute, \
font=("times new roman",15))
self.minute_combobox['values'] = min_sec_list
self.minute_combobox.current(0)
self.minute_combobox.place(x=200,y=110)
# Combobox for seconds
self.second = IntVar()
self.second_combobox = ttk.Combobox(self.window, \
width=8, height=10, textvariable=self.second, \
font=("times new roman",15))
self.second_combobox['values'] = min_sec_list
self.second_combobox.current(0)
self.second_combobox.place(x=350,y=110)
# ===========================================
# Tkinter Buttons
# Cancel button
cancel_button = Button(self.window, text='Cancel',
font=('Helvetica',12), bg="white", fg="black",
command=self.Cancel)
cancel_button.place(x=70, y=150)
# Set Time Button
# When the user will press this button
# the 'Start' and 'Pause' button will
# show inside the 'self.button_frame' frame
set_button = Button(self.window, text='Set',
font=('Helvetica',12), bg="white", fg="black",
command=self.Get_Time)
set_button.place(x=160, y=150)
# It will destroy the window
def Cancel(self):
self.pause = True
self.window.destroy()
# When the set button is pressed, this
# function gets called
def Get_Time(self):
self.time_display = Label(self.time_frame,
font=('Helvetica', 20 , "bold"),
bg = 'gray35', fg = 'yellow')
self.time_display.place(x=130, y=210)
try:
# Total amount of time in seconds
h = (int(self.hour_combobox.get())*3600)
m = (int(self.minute_combobox.get())*60)
s = (int(self.second_combobox.get()))
self.time_left = h + m + s
# If the user try to set the default
# time(0:0:0) then a warning message will display
if s == 0 and m == 0 and h == 0:
messagebox.showwarning('Warning!',\
'Please select a right time to set')
else:
# Start Button
start_button = Button(self.button_frame, \
text='Start', font=('Helvetica',12), \
bg="green", fg="white", \
command=self.Threading)
start_button.place(x=20, y=0)
# Pause Button
pause_button = Button(self.button_frame, \
text='Pause', font=('Helvetica',12), \
bg="red", fg="white", command=self.pause_time)
pause_button.place(x=100, y=0)
except Exception as es:
messagebox.showerror("Error!", \
f"Error due to {es}")
# Creating a thread to run the show_time function
def Threading(self):
# Killing a thread through "daemon=True" isn't a
# good idea
self.x = Thread(target=self.start_time, daemon=True)
self.x.start()
# It wil clear all the widgets inside the
# 'self.button_frame' frame(Start and Pause buttons)
def Clear_Screen(self):
for widget in self.button_frame.winfo_children():
widget.destroy()
def pause_time(self):
self.pause = True
mins, secs = divmod(self.time_left, 60)
hours = 0
if mins > 60:
# hour minute
hours, mins = divmod(mins, 60)
self.time_display.config(text=f"Time Left: \
{hours}: {mins}: {secs}")
self.time_display.update()
# When the Start button will be pressed then,
# this "show_time" function will get called.
def start_time(self):
self.pause = False
while self.time_left > 0:
mins, secs = divmod(self.time_left, 60)
hours = 0
if mins > 60:
# hour minute
hours, mins = divmod(mins, 60)
self.time_display.config(text=f"Time Left: \
{hours}: {mins}: {secs}")
self.time_display.update()
# sleep function: for 1 second
time.sleep(1)
self.time_left = self.time_left -1
# When the time is over, a piece of music will
# play in the background
if self.time_left <= 0:
process = multiprocessing.Process(target=playsound, \
args=('Ringtones/romantic.mp3',))
process.start()
messagebox.showinfo('Time Over',\
'Please ENTER to stop playing')
process.terminate()
# Clearing the 'self.button_frame' frame
self.Clear_Screen()
# if the pause button is pressed,
# the while loop will break
if self.pause == True:
break
if __name__ == "__main__":
root = Tk()
# Creating a CountDown class object
obj = CountDown(root)
root.mainloop()
Download the Source Code
Download the source code from my GitHub page (https://github.com/subhankar-rakshit) through the Download button.
Summary
In this tutorial, we build a Countdown Timer in Python. We added Start and Pause features to this Timer. The users can start or resume the timer and pause it too.
It is very easy to use because of its simple graphical interface which is managed by Python Tkinter library. Do run this Countdown Timer and let me know how its performing.
If you have difficulty understanding somewhere, be sure to leave your comment in the comment section below. You will get a reply soon.
If interested, get more lovely Projects related to Python Tkinter below.
👉Meditation App in Python: Helps to Practice Deep Breathing
👉Test Your Typing Speed with Python - Tkinter Project
👉Create an Advanced Alarm Clock Using Python Tkinter
👉Image to Pencil Sketch Converter in Python - Tkinter Project
Thanks for reading!💙
PySeek
